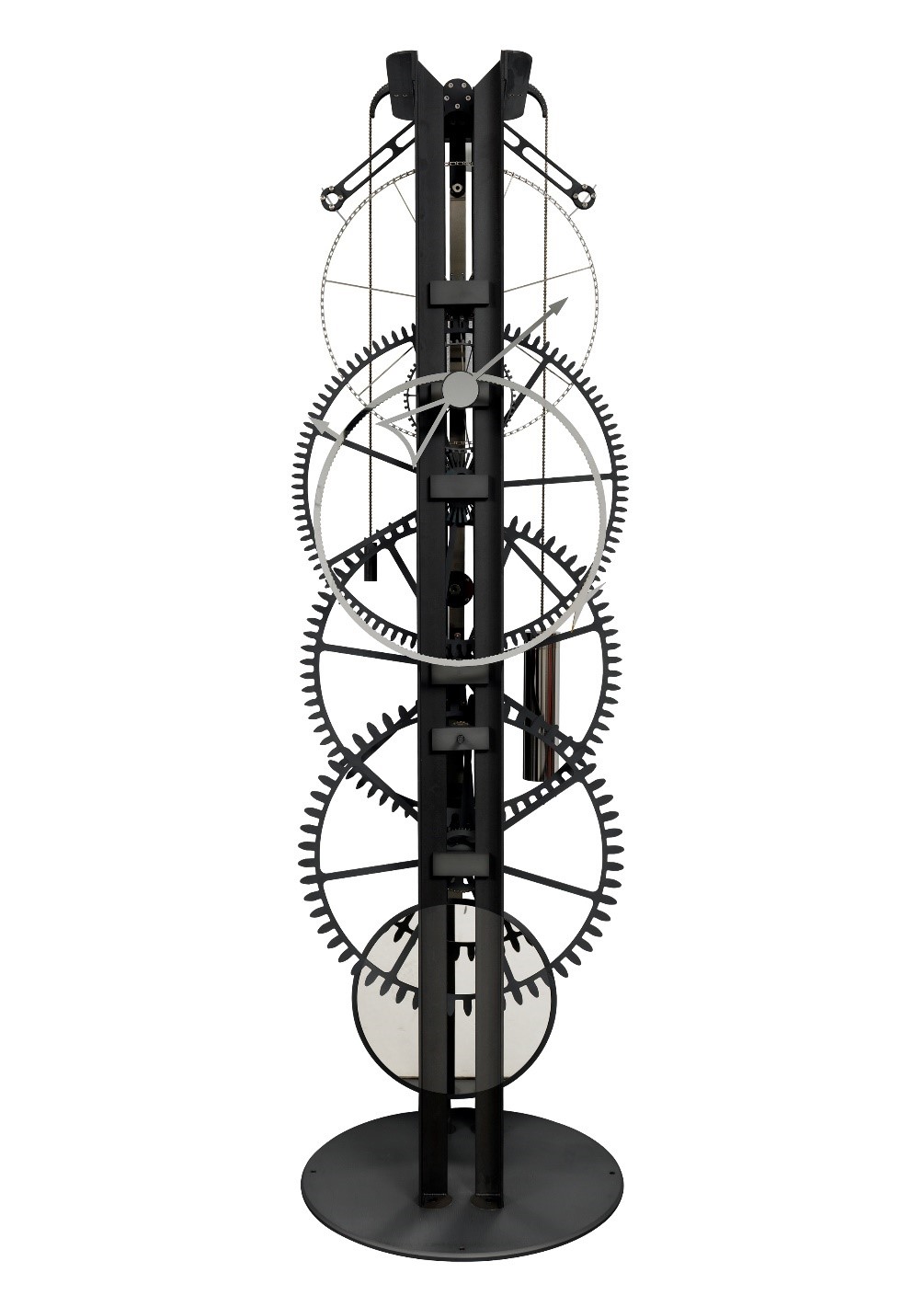

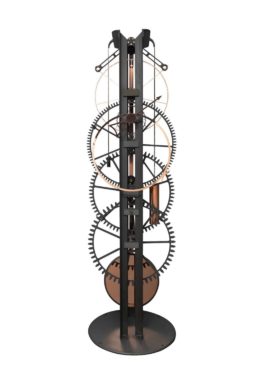

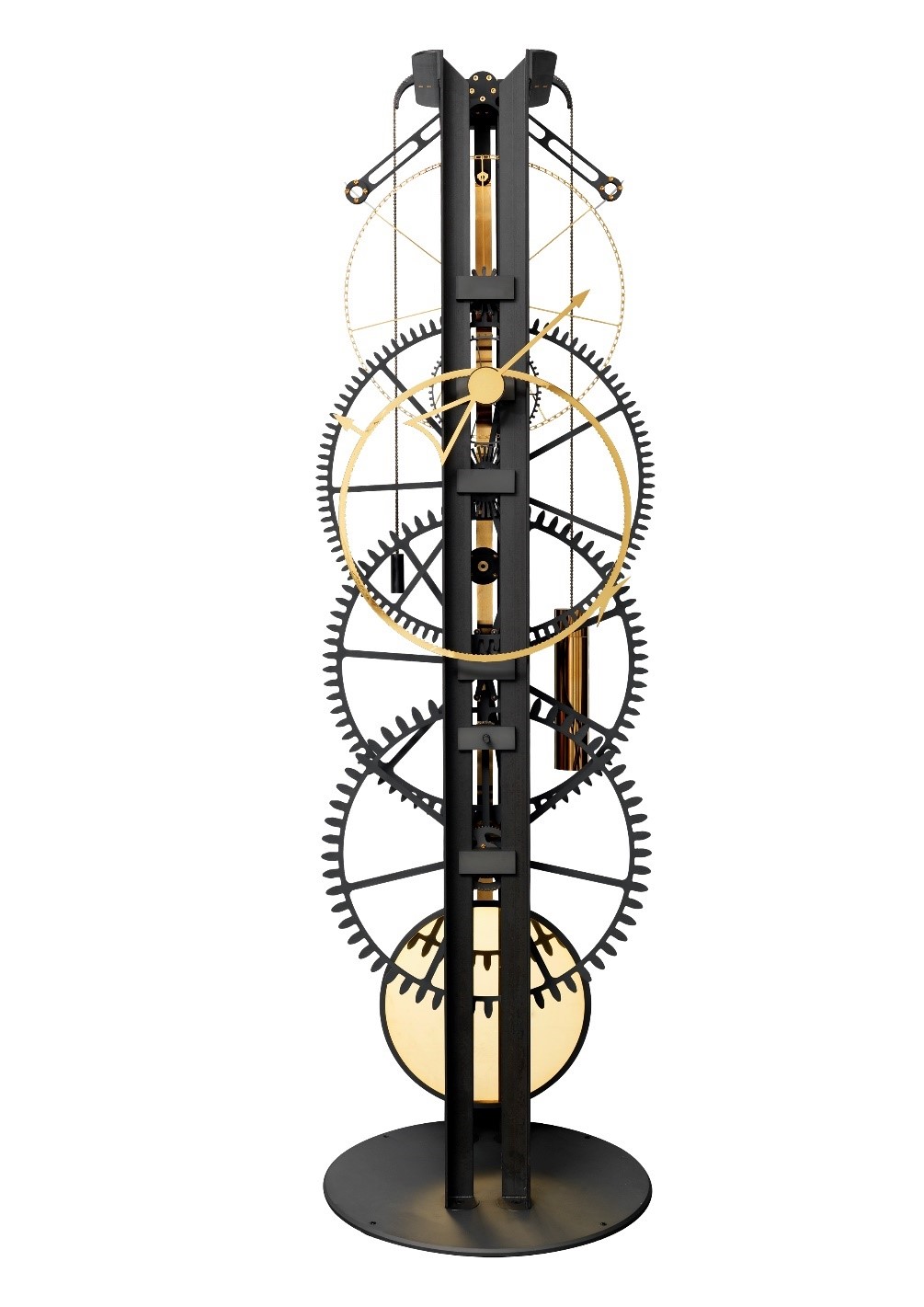

TM2
The TM2 gives every room a unique ambience, evoking grand hotel lobbies or the great halls of old trading houses. The air is pervaded by the majestic movement of the clock mechanism, the atmosphere shaped by the harmonic swing of the long pendulum that delineates unhurried intervals of time.
The TM2 has unobtrusive, simple, and refined time indicators.

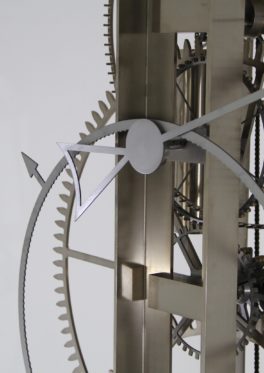

TM2 - time indication
TM2
TM2
TM2
Technical Data:
| Measurements: | height x width x depth, approx. 2’100 x 750 x 500 mm |
| Weight: | approx. 80 kg |
| Platform size: | 750 x 500 mm |
| Frame: | black or nickel-plated |
| Wheels, screws, pendulum,and weight: | gold-, nickel- or copper-plated |
| Drive: | weights |
| Max. diameter of wheels: | 600 mm |
| Frequency: | 24 beats (reciprocating motions) per minute |
| Run time: | approx. 3 days |
| Connection between gears: | spiral springs |
| Diameter of pendulum bob: | 400 mm |
| Diameter of anchor wheel: | 500 mm |
| Bearings: | high precision ball bearings |
