TM4

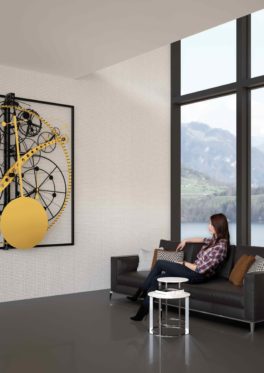

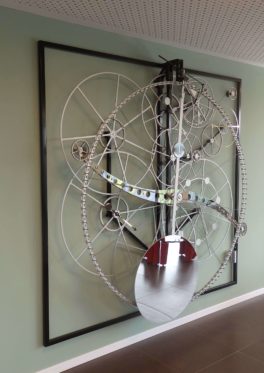

The TM4 is a huge kinetic wall tableau! It is equipped with hands to indicate second, minute, hour and day of the week. Its constant movement of innumerable wheels and its elaborate mechanism with a unique continuously rotating “Orbital Drive” are exposed to reveal the mesmerizing functions of the machine, making time visible and audible.
TM4
TM4
TM4
TM4
Technical Data:
| Dimensions: | height x width x depth, approx. 2’100 x 2’200 x 300 mm |
| Weight: | approx. 40 kg |
| Frame: | with or without frame. The filigree frame is matte-black treated steel |
| Aluminum wheels: | anodized gold or clear |
| Largest gear: | the anchor wheel has a diameter of about 1600 mm |
| Drive: | orbital drive, with the anchor beam rotating around the central anchor wheel |
| Diameter of pendulum disc: | approx. 700 mm; the pendulum is made of highly polished gold plated titanium (in the gold version) or highly polished chrome steel (monochrome version). Mirror finish |
| Winding: | fully automated by electric motor (110 - 230 V) |
| Operating noise level: | smooth and almost silent |
| Materials: | wheels, pendulum: anodized aluminum |
| Diameter of pendulum bob: | 400 mm |
| Diameter of anchor wheel: | 500 mm |
| Bearings: | high precision ball bearings |
